Finisar 10Gb SFP+ Optical Transceiver Short Range SR 850nm

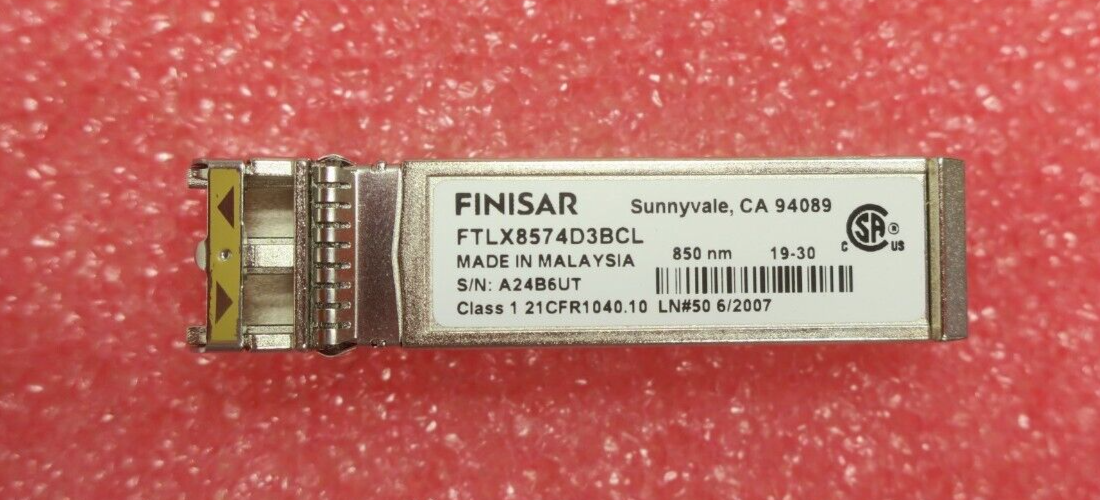

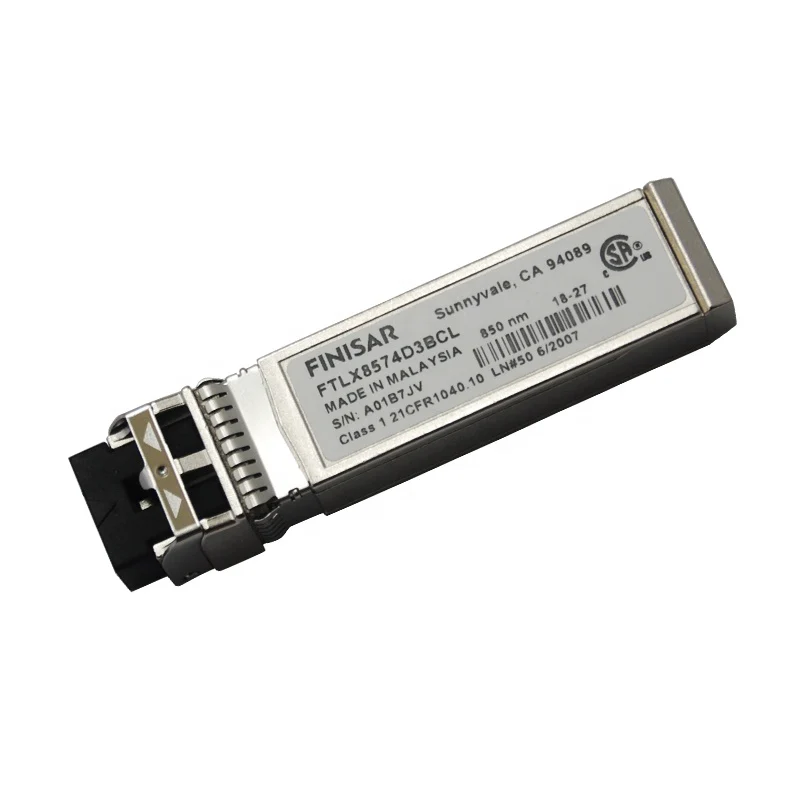

The Finisar FTLX8574D3BCL is a high-performance  10Gb SFP+ Short-Range (SR) SFP+ optical transceiver module designed for use over multimode fiber. It offers reliable, high-speed connectivity for data centers, enterprise networks, and storage applications.

Key Features & Capabilities

• Data Rate: Supports line rates from 9.95 Gb/s to 10.5 Gb/s

• Optical Interface: 850 nm VCSEL transmitter and PIN photodiode receiver

• Link Distance: Up to 400 m on OM4 multimode fiber (approx. 300 m on OM3)

• Connector Type: Duplex LC interface

• Power & Form Factor:

  • Hot-pluggable SFP+ module

  • Power consumption < 1 W

  • Operates from a single 3.3 V supply

• Standards & Compliance:
  Compliant with SFF-8431, SFF-8432, IEEE 802.3ae (10GBASE-SR/SW), and 10G Fibre Channel (1200-Mx-SN-I)

• Digital Diagnostics:
  Supports 2-wire serial interface (SFF-8472) for real-time monitoring of temperature, voltage, optical output power, and received power

• Operating Temperature: –5 °C to +70 °C (commercial range)

• Receiver Type:
  Utilizes a limiting receiver, making it suitable for systems not requiring EDC (Electronic Dispersion Compensation) PHYs.
