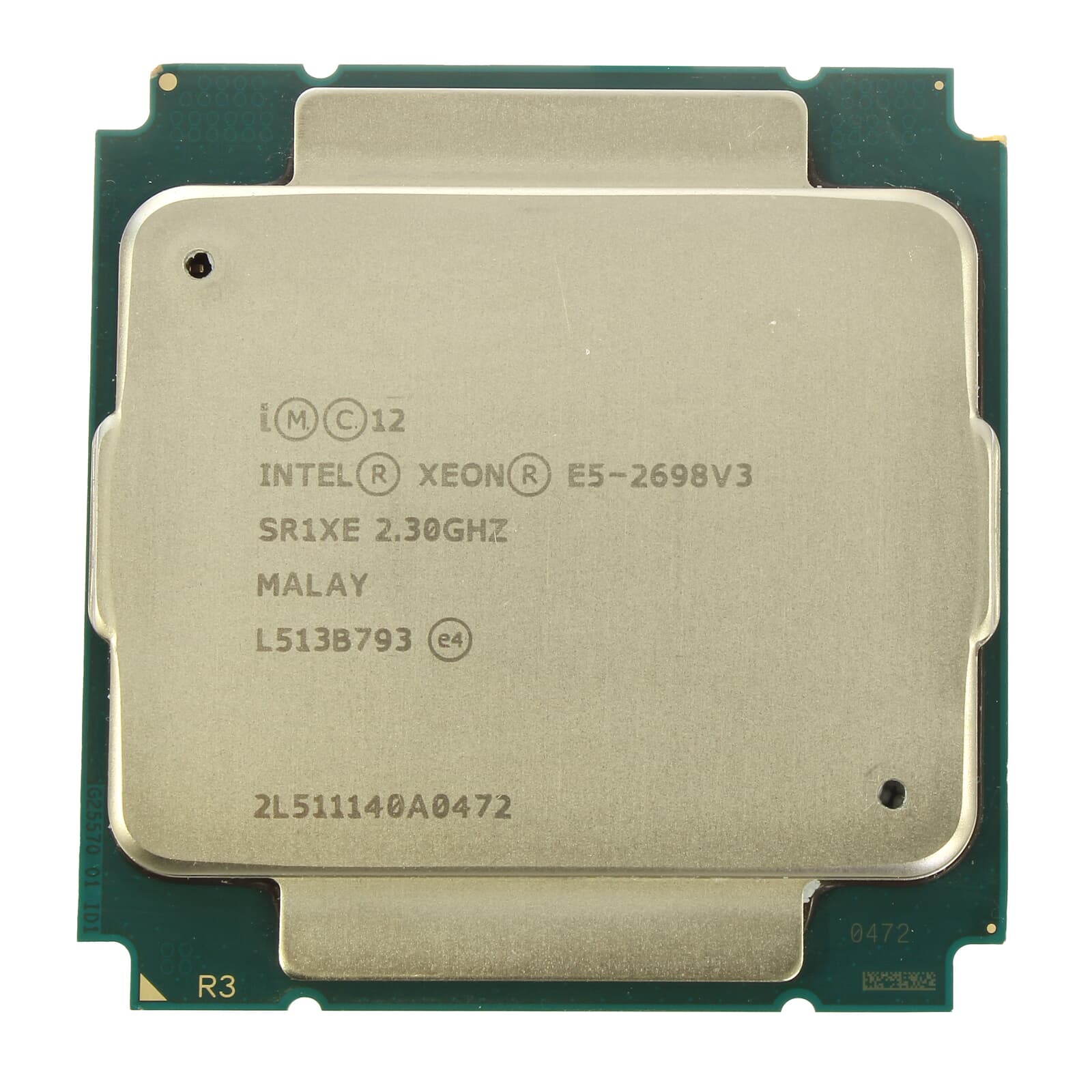

Intel Xeon E5-2698 v3 (16 Core) 2.30 GHz Processor

The Intel Xeon E5-2698 v3 belongs to Intel’s Xeon E5 v3 family and is based on the Haswell-EP (22nm) architecture. It is built for enterprise servers, data centers, and high-performance computing, focusing on multi-core performance rather than high clock speed.

⚙️ Core Specifications

• Cores / Threads: 16 cores, 32 threads
• Base Clock: 2.30 GHz
• Turbo Boost: Up to 3.60 GHz
• Cache: 40 MB Intel Smart Cache
• TDP: 135W

🧠 Memory & Platform

• Supports DDR4 RAM (1600 / 1866 / 2133 MHz)
• Maximum memory: up to 768 GB
• 4 memory channels
• ECC memory supported (server stability)

🔧 Platform & Expansion

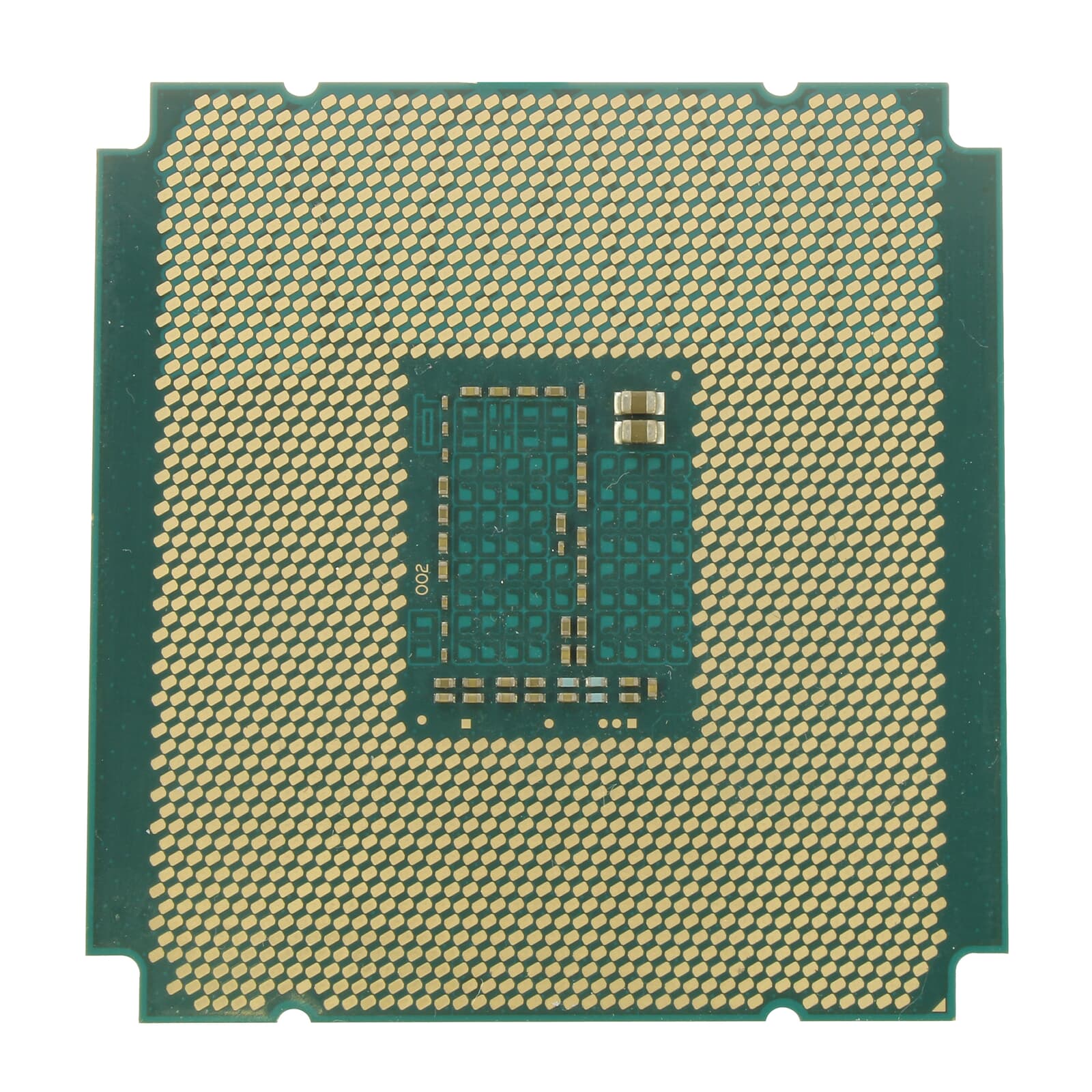

• Socket: LGA 2011-3
• PCIe lanes: 40 (PCIe 3.0)
• Supports dual CPU systems (2-socket)
• QPI links: 2 for CPU communication
